This notebook serves as an end-to-end tutorial for generating, executing, and analyzing Random Circuit Sampling (RCS) experiments using the framework within ReCirq. Because full-chip quantum simulations are computationally expensive, this guide demonstrates how to use local verification on smaller sub-grids to calculate overall system performance for noisy simulation. We then run the circuits on actual quantum hardware through Quantum Engine and compare to the noisy simulations.
Throughout this notebook, we will walk through the following core workflow:
- Defining Qubit Patches: Partitioning a larger system into disjoint, non-overlapping sub-grids.
- Configuring the Noiseless Simulation: Executing a noiseless simulation to establish ideal Cross-Entropy Benchmarking (XEB) fidelities.
- Configuring the Noisy Simulation using measured error rates: Utilizing a noise model configured with realistic device noise properties to simulate actual hardware execution.
- Analyzing & Visualizing Results: Calculating individual patch fidelities and total system fidelity for noisy simulations, and plotting the results to show fidelity decay caused by accumulated noise.

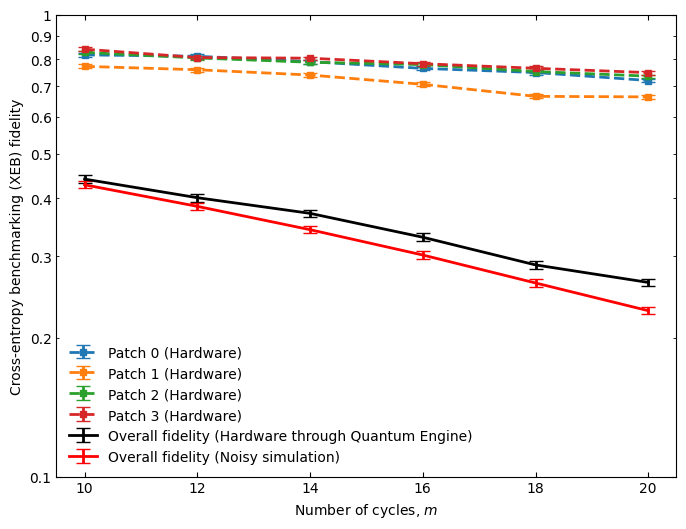

- Hardware demo: Performing the same data taking and analysis on actual quantum hardware and comparing against the simulation.
# To run this notebook in Google Colab, uncomment and run the following line:
#!pip install cirq cirq_google qsimcirq
# To install the local 'recirq' package from the repository:
# 1. Clone the repo: !git clone https://github.com/quantumlib/ReCirq.git
# 2. Install: !pip install -e ReCirq/
# 3. IMPORTANT: Restart the Colab runtime (Runtime > Restart session) after installation.
Imports
import cirq
import cirq_google
import qsimcirq
import recirq.random_circuit_sampling as rcs
import matplotlib.pyplot as plt
import numpy as np
from matplotlib import ticker
Define the patches
Patches serve as a tool for local verification and benchmarking. By partitioning the processor into non-overlapping sub-grids, we can use classical simulators to compute exact ideal states that would be computationally impossible at full-chip scale. This also allows us to characterize local noise profiles within specific hardware regions. Finally, we can estimate the overall fidelity of the larger system by calculating the product of the fidelities from these independent patches.
Select sets of connected qubits to serve as patches. These patches must be disjoint and should not share any common qubits.
patch_1 = cirq.GridQubit.rect(3,3,3,3)
patch_2 = cirq.GridQubit.rect(3,3,3,6)
patch_3 = cirq.GridQubit.rect(3,3,6,6)
patch_4 = cirq.GridQubit.rect(3,3,6,3)
patches = [patch_1, patch_2, patch_3, patch_4]
qubits = []
for patch in patches:
qubits += patch
Set up and run the experiment
Specify the qubit patches and the desired circuit depths for XEB calculation. Additionally, define the number of random circuit instances per configuration and the specific tiling pattern for the experiment. While the framework supports characterizing the fSim gate parameters (\(\theta, \phi, \zeta, \chi, \gamma\)), this step is bypassed here as we are performing an ideal noiseless simulation.
depths=[10, 12, 14, 16, 18, 20]
num_instances = 100
experiment = rcs.RCSExperiment(
patches=patches,
depths=depths,
num_instances=num_instances,
pattern_name="staggered",
seed= 2026
)
Noiseless simulation
results = experiment.run(sampler=cirq.Simulator(), n_repetitions=1000, characterize=False)
Running 600 zipped instances on 4 parallel patches...
Calculate linear XEB fidelities
To calculate fidelities via noiseless simulation, we can employ the standard cirq.Simulator(). Here, we use the performance-optimized qsimcirq.QSimSimulator() to improve execution efficiency.
fidelities = results.fidelities_lin(simulator=qsimcirq.QSimSimulator())
XEB Analysis: 100%|████████████████████████| 2400/2400 [00:12<00:00, 187.81it/s]

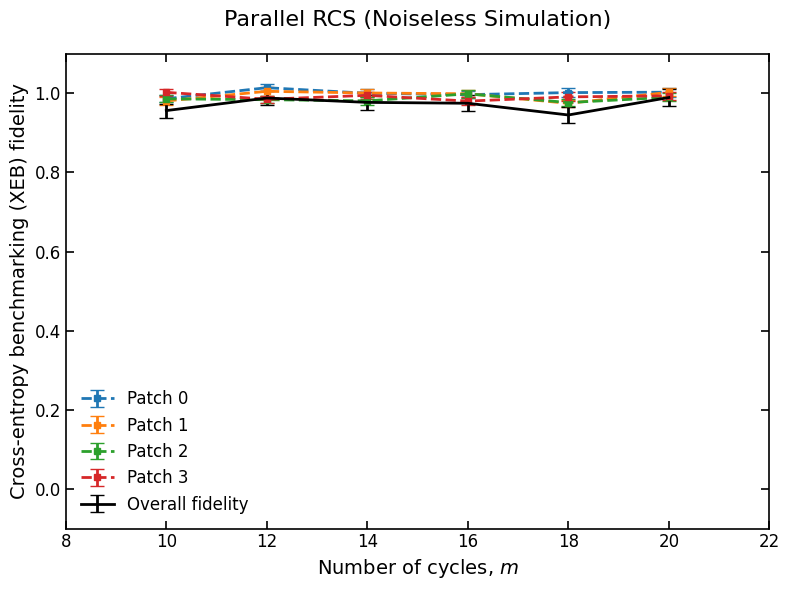

Plot the results
Visualize the XEB results for each patch across the specified circuit depths. The plot reflects the mean fidelity calculated across all random circuit instances for each (patch, depth) configuration.
Note on ideal vs. noisy simulation: You might notice that the plotted linear XEB fidelity is flat at around 1.0 across all circuit depths. This behavior is exactly what we expect from an ideal, noiseless simulation. In a real quantum hardware experiment (or a noisy simulation), incoherent errors and decoherence accumulate at each gate layer, resulting in a characteristic exponential decay curve as the circuit gets deeper. Since our simulated qubits do not suffer from any noise, the fidelity remains at ~1.0 (with statsitical fluctuations resulting purely from finite sampling variance across our 1000 repetitions and 100 random circuits). To decrease the fluctuations, you could run it using 1000 random circuits, but would take longer to run. See the next section for a noisy simulation.
fig, ax = plt.subplots(figsize=(8, 6))
# 1. Process and plot individual patches
means_matrix = np.zeros((len(patches), len(depths)))
errs_matrix = np.zeros((len(patches), len(depths)))
for i in range(len(patches)):
y_means = []
y_errs = []
for j, d in enumerate(depths):
fids = fidelities[(i, d)]
mean_val = np.mean(fids)
err_val = np.std(fids, ddof=1) / np.sqrt(num_instances)
y_means.append(mean_val)
y_errs.append(err_val)
means_matrix[i, j] = mean_val
errs_matrix[i, j] = err_val
ax.errorbar(
experiment.depths,
means_matrix[i],
yerr=errs_matrix[i],
marker='s',
markersize=4,
linewidth=2,
label=f'Patch {i}',
linestyle='--',
capsize=5,
color=f'C{i}'
)
# 2. Process and plot overall fidelity
overall_means = []
overall_errs = []
for j in range(len(depths)):
f_tot = np.prod(means_matrix[:, j])
overall_means.append(f_tot)
# Error propagation
rel_errors_sq = (errs_matrix[:, j] / means_matrix[:, j])**2
err_tot = f_tot * np.sqrt(np.sum(rel_errors_sq))
overall_errs.append(err_tot)
ax.errorbar(depths, overall_means, yerr=overall_errs, markersize=5,
linewidth=2, label='Overall fidelity', linestyle='solid', color='k', capsize=5)
ax.set_ylim(-0.1, 1.1)
ax.set_xlim(min(experiment.depths) - 2, max(experiment.depths) + 2)
ax.set_xlabel(r'Number of cycles, $m$', fontsize=14)
ax.set_ylabel('Cross-entropy benchmarking (XEB) fidelity', fontsize=14)
ax.set_title('Parallel RCS (Noiseless Simulation)', fontsize=16, pad=20)
ax.legend(frameon=False, fontsize=12)
ax.tick_params(
axis='both',
direction='in',
top=True,
right=True,
labelsize=12,
width=1.2,
length=6
)
for spine in ax.spines.values():
spine.set_linewidth(1.2)
plt.tight_layout()
plt.show()

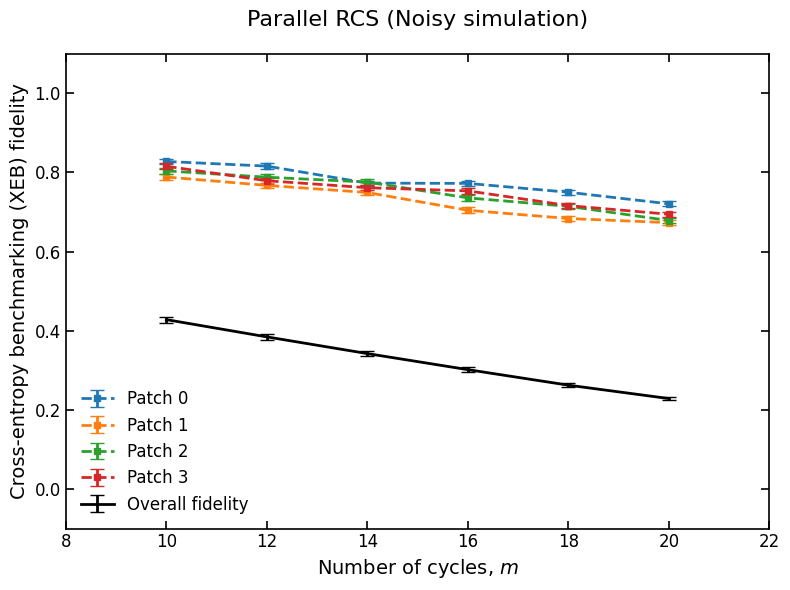

Noisy simulation
We perform noisy simulations using a custom noise model. The resulting XEB fidelity plot demonstrates the fidelity decay as circuit depth increases, reflecting the accumulation of errors in a noisy system.
# reload the experiment so as to use the same seed for comparison
experiment_sim = rcs.RCSExperiment(
patches=patches,
depths=depths,
num_instances=100,
pattern_name="staggered",
seed= 2026,
two_qubit_gate = cirq.PhasedFSimGate(theta=np.pi/2, zeta=0.14, chi = 0.0003, gamma = -0.005, phi=0.377)
)
Define the error channels that we will simulate.
We will include single- and two-qubit gate errors, asymmetric readout errors, and \(T_1\) decay during idling time.
from typing import Sequence
class AsymmetricReadoutChannel(cirq.Gate):
def __init__(self, p01: float, p10: float):
"""
Args:
p01: Probability of reading 0 when the true state is 1
p10: Probability of reading 1 when the true state is 0
"""
self.p01 = float(p01)
self.p10 = float(p10)
def _num_qubits_(self) -> int:
return 1
def _kraus_(self):
k0 = np.array([[np.sqrt(1 - self.p10), 0], [0, 0]])
k1 = np.array([[0, 0], [np.sqrt(self.p10), 0]])
k2 = np.array([[0, np.sqrt(self.p01)], [0, 0]])
k3 = np.array([[0, 0], [0, np.sqrt(1 - self.p01)]])
return [k0, k1, k2, k3]
def _has_kraus_(self):
return True
class HardwareTargetedAsymmetricNoise(cirq.NoiseModel):
def __init__(self,
single_errors: dict,
two_errors: dict,
zero_measurement_error: dict,
one_measurement_error: dict,
idle_gammas: dict):
"""
Args:
single_errors: single-qubit Pauli error rates
two_errors: two-qubit Pauli error rates
zero_measurement_error: 0->1 readout errors
one_measurement_error: 1->0 readout errors
idle_gammas: decay probability while a qubit is idling
"""
self.single_errors = single_errors
self.two_errors = two_errors
self.zero_measurement_error = zero_measurement_error
self.one_measurement_error = one_measurement_error
self.idle_gammas = idle_gammas
def noisy_operation(self, operation: cirq.Operation):
# --------------------------------------------------------
# 1. MEASUREMENT GATES
# --------------------------------------------------------
if cirq.is_measurement(operation):
# Yield readout noise BEFORE the measurement
for q in operation.qubits:
p10 = self.zero_measurement_error.get(q, 0.0)
p01 = self.one_measurement_error.get(q, 0.0)
if p01 > 0 or p10 > 0:
yield AsymmetricReadoutChannel(p01, p10).on(q)
# Now yield the actual measurement
yield operation
return
# --------------------------------------------------------
# 2. STANDARD GATES
# --------------------------------------------------------
# Yield the gate operation first
yield operation
# Then apply the depolarizing noise AFTER the gate
num_qubits = len(operation.qubits)
if num_qubits == 1:
q = operation.qubits[0]
p = self.single_errors.get(q, 0.0)
if p > 0:
yield cirq.depolarize(float(p)).on(q)
elif num_qubits == 2:
q1, q2 = operation.qubits
p = self.two_errors.get(
(q1, q2),
self.two_errors.get((q2, q1), 0.0)
)
if p > 0:
yield cirq.depolarize(float(p), n_qubits=2).on(q1, q2)
def noisy_moment(self, moment: cirq.Moment, system_qubits: Sequence[cirq.Qid]):
# 1. Always yield the original moment first so the intended gates execute
for op in moment.operations:
yield self.noisy_operation(op)
# 2. Identify which qubits are NOT participating in the current moment
idle_qubits = set(system_qubits) - set(moment.qubits)
# 3. Apply the amplitude damping channel to all idle qubits
idle_noise_ops = []
for q in idle_qubits:
# Look up the specific gamma for this qubit, defaulting to 0.0 if not found
gamma = self.idle_gammas.get(q, 0.0)
if gamma > 0:
idle_noise_ops.append(cirq.amplitude_damp(gamma).on(q))
if idle_noise_ops:
yield idle_noise_ops
Define the error rates.
These error rates were benchmarked on the device on which we will take the hardware data. The averages are:
- \(0\to 1\) readout errors: 0.34%
- \(1\to 0\) readout errors: 0.91%
- Single-qubit Pauli errors: 0.046%
- Two-qubit Pauli errors: 0.29%
zero_measurement_error = {cirq.GridQubit(3, 3): 0.003475000000000006,
cirq.GridQubit(3, 4): 0.0024250000000000105,
cirq.GridQubit(3, 5): 0.002929999999999988,
cirq.GridQubit(4, 3): 0.0037199999999999456,
cirq.GridQubit(4, 4): 0.00383,
cirq.GridQubit(4, 5): 0.0031799999999999606,
cirq.GridQubit(5, 3): 0.00275000000000003,
cirq.GridQubit(5, 4): 0.001574999999999993,
cirq.GridQubit(5, 5): 0.0018299999999999983,
cirq.GridQubit(3, 6): 0.004475000000000007,
cirq.GridQubit(3, 7): 0.0015899999999999803,
cirq.GridQubit(3, 8): 0.0019200000000000328,
cirq.GridQubit(4, 6): 0.0013499999999999623,
cirq.GridQubit(4, 7): 0.011750000000000038,
cirq.GridQubit(4, 8): 0.0019599999999999618,
cirq.GridQubit(5, 6): 0.01281500000000002,
cirq.GridQubit(5, 7): 0.0013900000000000023,
cirq.GridQubit(5, 8): 0.003669999999999951,
cirq.GridQubit(6, 6): 0.0022649999999999615,
cirq.GridQubit(6, 7): 0.002990000000000048,
cirq.GridQubit(6, 8): 0.0027199999999999447,
cirq.GridQubit(7, 6): 0.0017599999999999838,
cirq.GridQubit(7, 7): 0.0019799999999999818,
cirq.GridQubit(7, 8): 0.005024999999999946,
cirq.GridQubit(8, 6): 0.0012050000000000116,
cirq.GridQubit(8, 7): 0.0023800000000000487,
cirq.GridQubit(8, 8): 0.0028799999999999937,
cirq.GridQubit(6, 3): 0.0022900000000000142,
cirq.GridQubit(6, 4): 0.003469999999999973,
cirq.GridQubit(6, 5): 0.010264999999999969,
cirq.GridQubit(7, 3): 0.0041400000000000325,
cirq.GridQubit(7, 4): 0.0019299999999999873,
cirq.GridQubit(7, 5): 0.001654999999999962,
cirq.GridQubit(8, 3): 0.005950000000000011,
cirq.GridQubit(8, 4): 0.0015849999999999476,
cirq.GridQubit(8, 5): 0.0024600000000000177}
one_measurement_error = {cirq.GridQubit(3, 3): 0.005179999999999962,
cirq.GridQubit(3, 4): 0.012475000000000014,
cirq.GridQubit(3, 5): 0.005955000000000044,
cirq.GridQubit(4, 3): 0.019405000000000006,
cirq.GridQubit(4, 4): 0.00686500000000001,
cirq.GridQubit(4, 5): 0.007310000000000039,
cirq.GridQubit(5, 3): 0.005739999999999967,
cirq.GridQubit(5, 4): 0.012624999999999997,
cirq.GridQubit(5, 5): 0.005085000000000006,
cirq.GridQubit(3, 6): 0.014935000000000032,
cirq.GridQubit(3, 7): 0.005305000000000004,
cirq.GridQubit(3, 8): 0.005985000000000018,
cirq.GridQubit(4, 6): 0.006480000000000041,
cirq.GridQubit(4, 7): 0.014660000000000006,
cirq.GridQubit(4, 8): 0.006879999999999997,
cirq.GridQubit(5, 6): 0.022700000000000053,
cirq.GridQubit(5, 7): 0.005909999999999971,
cirq.GridQubit(5, 8): 0.0065150000000000485,
cirq.GridQubit(6, 6): 0.007445000000000035,
cirq.GridQubit(6, 7): 0.006310000000000038,
cirq.GridQubit(6, 8): 0.005325000000000024,
cirq.GridQubit(7, 6): 0.005434999999999968,
cirq.GridQubit(7, 7): 0.007120000000000015,
cirq.GridQubit(7, 8): 0.008915000000000006,
cirq.GridQubit(8, 6): 0.007299999999999973,
cirq.GridQubit(8, 7): 0.007430000000000048,
cirq.GridQubit(8, 8): 0.00682499999999997,
cirq.GridQubit(6, 3): 0.00988,
cirq.GridQubit(6, 4): 0.012994999999999979,
cirq.GridQubit(6, 5): 0.012745000000000006,
cirq.GridQubit(7, 3): 0.01982499999999998,
cirq.GridQubit(7, 4): 0.008549999999999947,
cirq.GridQubit(7, 5): 0.005924999999999958,
cirq.GridQubit(8, 3): 0.009220000000000006,
cirq.GridQubit(8, 4): 0.007284999999999986,
cirq.GridQubit(8, 5): 0.010985000000000023}
# Note: single- and two-qubit gate errors are Pauli errors
sq_rb_error = {cirq.GridQubit(3, 3): 0.00036299417098442643,
cirq.GridQubit(3, 4): 0.0003151232903715606,
cirq.GridQubit(3, 5): 0.00025276005421182024,
cirq.GridQubit(4, 3): 0.00031154484874013066,
cirq.GridQubit(4, 4): 0.0005419156445040652,
cirq.GridQubit(4, 5): 0.00041473008166187375,
cirq.GridQubit(5, 3): 0.00040572403811461877,
cirq.GridQubit(5, 4): 0.00040327403158429975,
cirq.GridQubit(5, 5): 0.0003558049147037168,
cirq.GridQubit(3, 6): 0.0007386811310649555,
cirq.GridQubit(3, 7): 0.0004997688843524084,
cirq.GridQubit(3, 8): 0.0003939176586215676,
cirq.GridQubit(4, 6): 0.0005583679672660491,
cirq.GridQubit(4, 7): 0.00033356268901379993,
cirq.GridQubit(4, 8): 0.00018463773473376133,
cirq.GridQubit(5, 6): 0.0008581743383332952,
cirq.GridQubit(5, 7): 0.00028839402369387757,
cirq.GridQubit(5, 8): 0.0003752641805549739,
cirq.GridQubit(6, 6): 0.00043792810721013375,
cirq.GridQubit(6, 7): 0.00036158666773905557,
cirq.GridQubit(6, 8): 0.00038601890498057845,
cirq.GridQubit(7, 6): 0.00047163390127094584,
cirq.GridQubit(7, 7): 0.0002925024785367103,
cirq.GridQubit(7, 8): 0.0008378045867679651,
cirq.GridQubit(8, 6): 0.0003366424184771677,
cirq.GridQubit(8, 7): 0.0007436021349879751,
cirq.GridQubit(8, 8): 0.0008530282844773363,
cirq.GridQubit(6, 3): 0.0003042307966325819,
cirq.GridQubit(6, 4): 0.00048383430152168505,
cirq.GridQubit(6, 5): 0.00037916050144823354,
cirq.GridQubit(7, 3): 0.0004046598577816807,
cirq.GridQubit(7, 4): 0.0006530128157673787,
cirq.GridQubit(7, 5): 0.0003316922111483711,
cirq.GridQubit(8, 3): 0.0008574077522668366,
cirq.GridQubit(8, 4): 0.0002732874027250587,
cirq.GridQubit(8, 5): 0.0006295536146026515}
iswap_like_xeb_error = {(cirq.GridQubit(3, 4), cirq.GridQubit(4, 4)): 0.004096518116386491,
(cirq.GridQubit(3, 6), cirq.GridQubit(4, 6)): 0.0030560540911613032,
(cirq.GridQubit(3, 8), cirq.GridQubit(4, 8)): 0.0036313902666398196,
(cirq.GridQubit(4, 3), cirq.GridQubit(5, 3)): 0.004166279161363744,
(cirq.GridQubit(4, 5), cirq.GridQubit(5, 5)): 0.0027274756995292887,
(cirq.GridQubit(4, 7), cirq.GridQubit(5, 7)): 0.005812213916606343,
(cirq.GridQubit(5, 4), cirq.GridQubit(6, 4)): 0.003844697351672831,
(cirq.GridQubit(5, 6), cirq.GridQubit(6, 6)): 0.0024942409937273383,
(cirq.GridQubit(5, 8), cirq.GridQubit(6, 8)): 0.002404617698600897,
(cirq.GridQubit(6, 3), cirq.GridQubit(7, 3)): 0.001917726210814985,
(cirq.GridQubit(6, 5), cirq.GridQubit(7, 5)): 0.0033132179005683146,
(cirq.GridQubit(6, 7), cirq.GridQubit(7, 7)): 0.0033844963234353626,
(cirq.GridQubit(7, 4), cirq.GridQubit(8, 4)): 0.0023539708250213884,
(cirq.GridQubit(7, 6), cirq.GridQubit(8, 6)): 0.004008603091373228,
(cirq.GridQubit(7, 8), cirq.GridQubit(8, 8)): 0.0037258708447190925,
(cirq.GridQubit(3, 3), cirq.GridQubit(4, 3)): 0.0022041789611782978,
(cirq.GridQubit(3, 5), cirq.GridQubit(4, 5)): 0.0031291373192299937,
(cirq.GridQubit(3, 7), cirq.GridQubit(4, 7)): 0.0014744789314734275,
(cirq.GridQubit(4, 4), cirq.GridQubit(5, 4)): 0.004607335871011642,
(cirq.GridQubit(4, 6), cirq.GridQubit(5, 6)): 0.0024134477674965515,
(cirq.GridQubit(4, 8), cirq.GridQubit(5, 8)): 0.0015603848238843199,
(cirq.GridQubit(5, 3), cirq.GridQubit(6, 3)): 0.002933884338998452,
(cirq.GridQubit(5, 5), cirq.GridQubit(6, 5)): 0.0027921229466337794,
(cirq.GridQubit(5, 7), cirq.GridQubit(6, 7)): 0.0031083416054357785,
(cirq.GridQubit(6, 4), cirq.GridQubit(7, 4)): 0.002908152523505604,
(cirq.GridQubit(6, 6), cirq.GridQubit(7, 6)): 0.0027817601807209047,
(cirq.GridQubit(6, 8), cirq.GridQubit(7, 8)): 0.002536980726829674,
(cirq.GridQubit(7, 3), cirq.GridQubit(8, 3)): 0.0020185597000006023,
(cirq.GridQubit(7, 5), cirq.GridQubit(8, 5)): 0.0027235989166199057,
(cirq.GridQubit(7, 7), cirq.GridQubit(8, 7)): 0.0025928853580787364,
(cirq.GridQubit(3, 3), cirq.GridQubit(3, 4)): 0.002530811765347196,
(cirq.GridQubit(3, 5), cirq.GridQubit(3, 6)): 0.00204630793761533,
(cirq.GridQubit(3, 7), cirq.GridQubit(3, 8)): 0.0036740130595537893,
(cirq.GridQubit(4, 4), cirq.GridQubit(4, 5)): 0.0023275551954772197,
(cirq.GridQubit(4, 6), cirq.GridQubit(4, 7)): 0.0024186592867337514,
(cirq.GridQubit(5, 3), cirq.GridQubit(5, 4)): 0.0025771310884421805,
(cirq.GridQubit(5, 5), cirq.GridQubit(5, 6)): 0.0027919889335843717,
(cirq.GridQubit(5, 7), cirq.GridQubit(5, 8)): 0.003377728936249623,
(cirq.GridQubit(6, 4), cirq.GridQubit(6, 5)): 0.0028307924288256334,
(cirq.GridQubit(6, 6), cirq.GridQubit(6, 7)): 0.0023577873070690716,
(cirq.GridQubit(7, 3), cirq.GridQubit(7, 4)): 0.004789861833920037,
(cirq.GridQubit(7, 5), cirq.GridQubit(7, 6)): 0.002382550832382528,
(cirq.GridQubit(7, 7), cirq.GridQubit(7, 8)): 0.00253035489427976,
(cirq.GridQubit(8, 4), cirq.GridQubit(8, 5)): 0.0024116146059124585,
(cirq.GridQubit(8, 6), cirq.GridQubit(8, 7)): 0.0022335120171705983,
(cirq.GridQubit(3, 4), cirq.GridQubit(3, 5)): 0.0020454322699581945,
(cirq.GridQubit(3, 6), cirq.GridQubit(3, 7)): 0.0027315126114735994,
(cirq.GridQubit(4, 3), cirq.GridQubit(4, 4)): 0.0018566166127291159,
(cirq.GridQubit(4, 5), cirq.GridQubit(4, 6)): 0.004770730434662945,
(cirq.GridQubit(4, 7), cirq.GridQubit(4, 8)): 0.002190870098095661,
(cirq.GridQubit(5, 4), cirq.GridQubit(5, 5)): 0.0021655540176240134,
(cirq.GridQubit(5, 6), cirq.GridQubit(5, 7)): 0.0038093304264023506,
(cirq.GridQubit(6, 3), cirq.GridQubit(6, 4)): 0.002467492961784959,
(cirq.GridQubit(6, 5), cirq.GridQubit(6, 6)): 0.002807683400208698,
(cirq.GridQubit(6, 7), cirq.GridQubit(6, 8)): 0.003732897355938729,
(cirq.GridQubit(7, 4), cirq.GridQubit(7, 5)): 0.0022138316401477606,
(cirq.GridQubit(7, 6), cirq.GridQubit(7, 7)): 0.0026268863478660573,
(cirq.GridQubit(8, 3), cirq.GridQubit(8, 4)): 0.0016874914192311144,
(cirq.GridQubit(8, 5), cirq.GridQubit(8, 6)): 0.0022498834307427967,
(cirq.GridQubit(8, 7), cirq.GridQubit(8, 8)): 0.0032546228072157304}
# The noise model class converts inferred errors to pauli errors
targeted_hardware_noise = HardwareTargetedAsymmetricNoise(
single_errors=sq_rb_error,
two_errors=iswap_like_xeb_error,
zero_measurement_error=zero_measurement_error ,
one_measurement_error=one_measurement_error,
idle_gammas = {q: 0.0005 for q in qubits}
)
sampler_digital_noise = cirq.DensityMatrixSimulator(noise=targeted_hardware_noise)
Run the noisy simulation:
n_repetitions_digital_noise = 10000
results_digital_noise = experiment_sim.run(
sampler = sampler_digital_noise,
n_repetitions = n_repetitions_digital_noise,
characterize= True,
theta=False,
phi=True,
)
100%|████████████████████████████████████████████████████████| 207/207 [09:24<00:00, 2.73s/it] Running 600 zipped instances on 4 parallel patches...
fidelities = results_digital_noise.fidelities_lin(simulator=qsimcirq.QSimSimulator())
XEB Analysis: 100%|████████████████████████████████████████| 2400/2400 [01:14<00:00, 32.33it/s]
fig, ax = plt.subplots(figsize=(8, 6))
# 1. Process and plot individual patches
means_matrix = np.zeros((len(patches), len(depths)))
errs_matrix = np.zeros((len(patches), len(depths)))
for i in range(len(patches)):
y_means = []
y_errs = []
for j, d in enumerate(depths):
fids = fidelities[(i, d)]
mean_val = np.mean(fids)
err_val = np.std(fids, ddof=1) / np.sqrt(num_instances)
y_means.append(mean_val)
y_errs.append(err_val)
means_matrix[i, j] = mean_val
errs_matrix[i, j] = err_val
ax.errorbar(
experiment.depths,
means_matrix[i],
yerr=errs_matrix[i],
marker='s',
markersize=4,
linewidth=2,
label=f'Patch {i}',
linestyle='--',
capsize=5,
color=f'C{i}'
)
# 2. Process and plot overall fidelity
overall_means_sim = []
overall_errs_sim = []
for j in range(len(depths)):
f_tot = np.prod(means_matrix[:, j])
overall_means_sim.append(f_tot)
# Error propagation
rel_errors_sq = (errs_matrix[:, j] / means_matrix[:, j])**2
err_tot = f_tot * np.sqrt(np.sum(rel_errors_sq))
overall_errs_sim.append(err_tot)
ax.errorbar(depths, overall_means_sim, yerr=overall_errs_sim, markersize=5,
linewidth=2, label='Overall fidelity', linestyle='solid', color='k', capsize=5)
ax.set_ylim(-0.1, 1.1)
ax.set_xlim(min(experiment.depths) - 2, max(experiment.depths) + 2)
ax.set_xlabel(r'Number of cycles, $m$', fontsize=14)
ax.set_ylabel('Cross-entropy benchmarking (XEB) fidelity', fontsize=14)
ax.set_title('Parallel RCS (Noisy simulation)', fontsize=16, pad=20)
ax.legend(frameon=False, fontsize=12)
ax.tick_params(
axis='both',
direction='in',
top=True,
right=True,
labelsize=12,
width=1.2,
length=6
)
for spine in ax.spines.values():
spine.set_linewidth(1.2)
plt.tight_layout()
plt.show()
Hardware demo
Now, let's perform the same experiment on real quantum hardware using Quantum Engine and see how it compares against the simulation.
project_id = "" # @param {type:"string"}
processor_name = "" # @param {type:"string"}
config_name = "" # @param {type:"string"}
engine = cirq_google.get_engine(project_id)
sampler_engine = engine.get_sampler(processor_name, device_config_name=config_name)
# reload this to reset the random number generator
depths_engine = [10, 12, 14, 16, 18, 20]
experiment_engine = rcs.RCSExperiment(
patches=patches,
depths=depths_engine,
num_instances=100,
pattern_name="staggered",
seed= 2026
)
n_repetitions_engine = 10_000
results_engine = experiment_engine.run(
sampler = sampler_engine,
n_repetitions = n_repetitions_engine,
characterize= True,
theta=False,
phi=True
)
fidelities_engine = results_engine.fidelities_lin()
100%|████████████████████████████████████████████████████████████████████████████████████████████████| 207/207 [02:05<00:00, 1.66it/s] Running 600 zipped instances on 4 parallel patches... XEB Analysis: 100%|████████████████████████████████████████████████████████████████████████████████| 2400/2400 [01:46<00:00, 22.53it/s]
Now we can plot the hardware data and compare against our earlier simulation.
fig, ax = plt.subplots(figsize=(8, 6))
# 1. Process and plot individual patches
means_matrix = np.zeros((len(patches), len(depths_engine)))
errs_matrix = np.zeros((len(patches), len(depths_engine)))
for i in range(len(patches)):
y_means = []
y_errs = []
for j, d in enumerate(depths_engine):
fids = fidelities_engine[(i, d)]
mean_val = np.mean(fids)
err_val = np.std(fids, ddof=1) / np.sqrt(num_instances)
y_means.append(mean_val)
y_errs.append(err_val)
means_matrix[i, j] = mean_val
errs_matrix[i, j] = err_val
ax.errorbar(
experiment_engine.depths,
means_matrix[i],
yerr=errs_matrix[i],
marker='s',
markersize=4,
linewidth=2,
label=f'Patch {i} (Hardware)',
linestyle='--',
capsize=5,
color=f'C{i}'
)
# 2. Process and plot overall fidelity
overall_means_engine = []
overall_errs_engine = []
for j in range(len(depths_engine)):
f_tot = np.prod(means_matrix[:, j])
overall_means_engine.append(f_tot)
# Error propagation
rel_errors_sq = (errs_matrix[:, j] / means_matrix[:, j])**2
err_tot = f_tot * np.sqrt(np.sum(rel_errors_sq))
overall_errs_engine.append(err_tot)
ax.errorbar(depths_engine, overall_means_engine, yerr=overall_errs_engine, markersize=5,
linewidth=2, label='Overall fidelity (Hardware through Quantum Engine)', linestyle='solid', color='k', capsize=5)
ax.errorbar(depths, overall_means_sim, yerr=overall_errs_sim, markersize=5,
linewidth=2, label='Overall fidelity (Noisy simulation)', linestyle='solid', color='r', capsize=5)
ax.set_xlabel(r'Number of cycles, $m$')
ax.set_ylabel('Cross-entropy benchmarking (XEB) fidelity')
ax.legend(frameon=False)
ax.tick_params(
axis='both',
direction='in',
top=True,
right=True,
which='both'
)
ax.set_yscale('log')
ax.set_ylim(1e-1, 1)
ax.yaxis.set_major_formatter(ticker.StrMethodFormatter('{x:.1g}'))
ax.yaxis.set_minor_formatter(ticker.StrMethodFormatter('{x:.1g}'))
